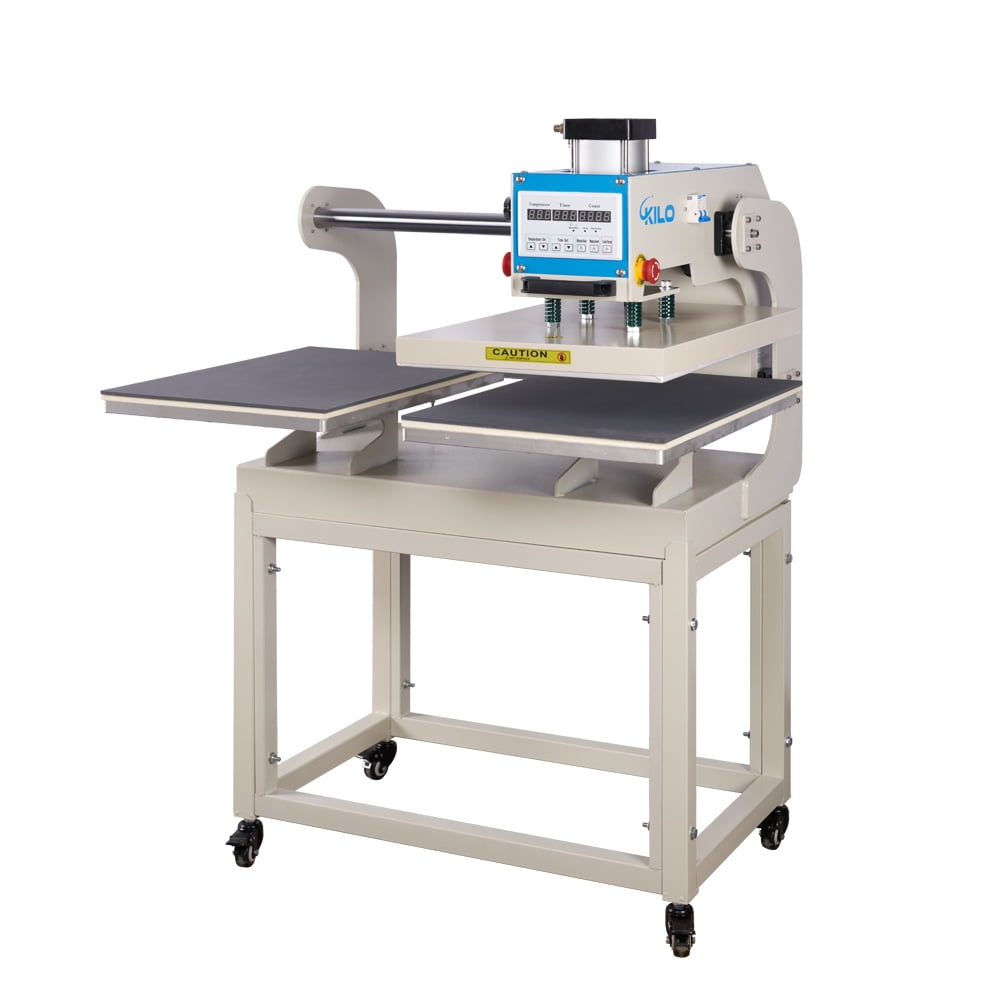

16″ x 24″ Up-sliding Pneumatic Heat Press Machine Sublimation Machine Textile Heat Transfer T-Shirt Printing Machine

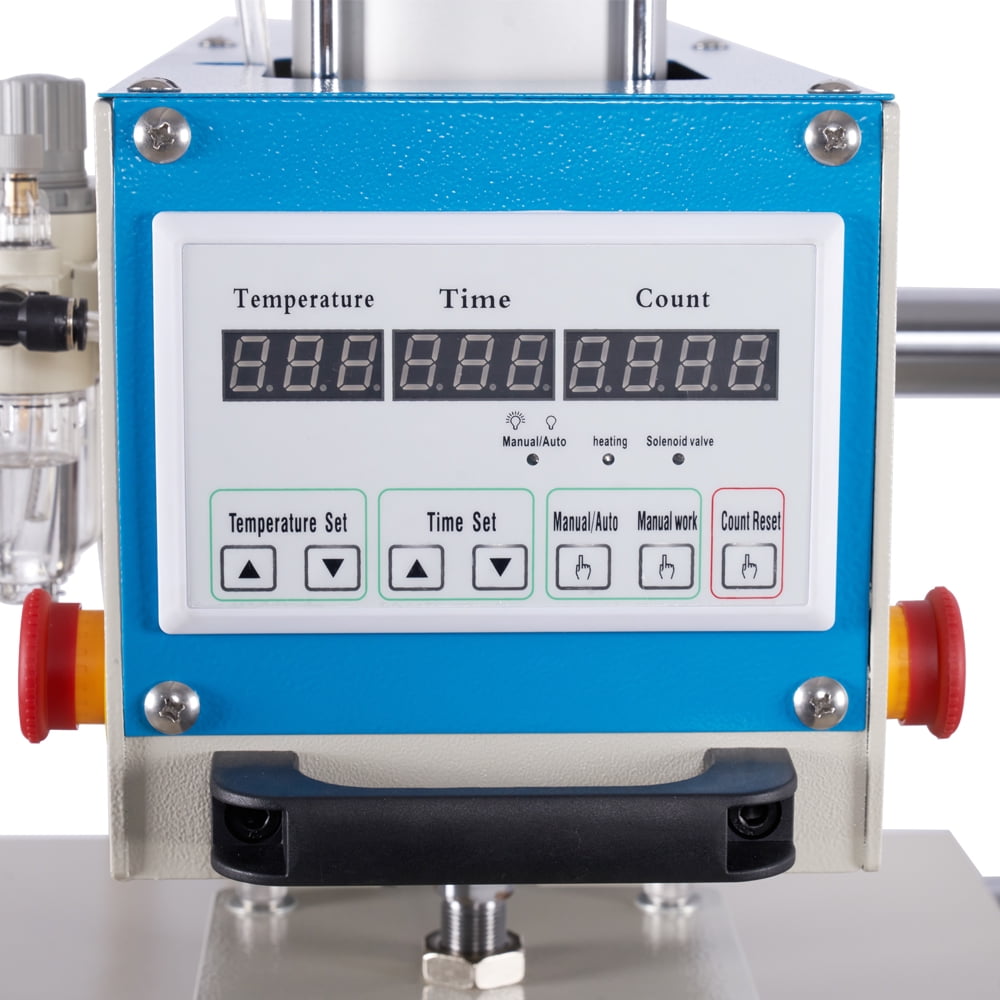

1. Heat press machine is full digital integrated display control; 2. High accuracy of signal indication when press process is completed; 3. Heating tube and heating plate are integrated into a whole part, short heating time, safe, durable and with even temperature; 4. Heat press machine pressure can be adjusted up to 0.8Mpa, It adopts connected track which is stable and convenient for sliding, with high efficiency; 5. Special high temperature cloth for hot stamping machine covered 6. Lower plate covered with silicon mat and sponge to heat even heating pressure 7. Heat press machine is automation print once backside inductive screw touched 8. Left and right side bearings parallelly move the heat press machine 9. General pressure for 0.4Mpa-0.6Mpa heat printing Technical features: Voltage(V): 110/220 Power(KW): 3.5 Temperature(℃): 0-299 Delaying time(S): 1-99 G.W.(LB): 209 Packing Size(in): 44” X 35′ X 33” Accept Thickness: Max. 2.36” Thick Items Range of Application: Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics Heat Plate Size: 16” x 24” (40 x 60cm) Pure Cotton Time: 15s-25s Polyester Time: 40s Chemical Fiber Time: 10s-40s Pearl Board Time: 60s-100s Metal Pendant Time: 60s Mousepad Time: 50s Vitrolite Time: 180s Ceramics Time: 180s Temperature Requirements of Different Materials Pure cotton 356℉-428℉ (180℃-220℃) Polyester 356℉ (180℃) Chemical fiber 302℉-356℉ (150℃-180℃) Pearl board 356℉ (180℃) Metal pendant 356℉ (180℃) Mousepad 374℉ (190℃) Vitrolite 392℉ (200℃) Key ring pendant 356℉ (180℃) Ceramics 356℉-428℉ (180℃-220℃) 1. Vertical Type for Ready-to Wear Garments 2. Vertical Angle is 75°
