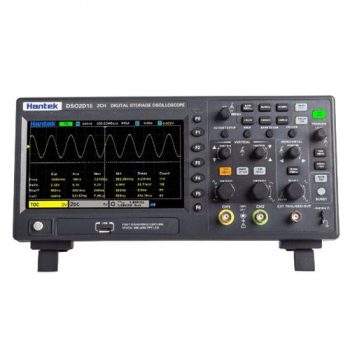

DSO2D10 100MHz Bench Oscilloscope Waveform Generator

Description 100MHz 2-Channel Bench Oscilloscope with Arbitrary Waveform Generator & Frequency Counter The Hantek DSO-2D10 is a cost-effective benchtop oscilloscope with 100MHz bandwidth, 1GS/s and 8M memory depth.  This model also features a 1-channel waveform generator and supports arbitrary waveform output,  14 kinds of trigger modes and comes standard with 5 kinds of serial protocol triggers and decodes.  It offers 32 kinds of auto measurements with statistics, a 3-digit digital voltage meter and 6-digit hardware frequency indicator functions, 2 sets of DVM and abundant SCPI remote command control. It is a useful commissioning instrument for various engineering fields such as communication, aerospace, national defence, embedded systems, computers, research and education. Oscilloscope Specifications: Oscilloscope channels: 2 Bandwidth: 100MHz Sampling rate: 1GS/s Memory depth: 8M Vertical range: 2mV/div ~ 10V/div Vertical resolution: 8-bit Maximum record length: Single channel 8M; Two channels 4M Mathematical operation: , -, ×, ÷, FFT FFT spectrum analyser: Window: Rectangle, Hanning, Hamming, Blackman, Bartlett, Flattop Trigger types: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Under Amp, UART, LIN, CAN, SPI, IIC BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures 32 Auto measurements: frequency, period, mean, peak-to-peak, RMS, minimum, maximum, rising time, falling time, width, – width, base, top, middle, amplitude, overshoot, preshoot, rising edge phase difference, falling edge phase difference, duty, – duty, period mean, PRMS, FOVshoot, ROVshoot, BWIDTH, FRF, FFR, LRR, LRF, LFR, LFF Arbitrary Waveform Generator Specifications: Channels: 1 Sampling rate: 200MS/s Vertical resolution: 12 bits Maximum frequency: 25MHz Standard waveforms: sine, square, ramp, Exp, noise, DC Arbitrary waveforms: Arb1, Arb2, Arb3, Arb4 Waveform length: 4KSa Output impedance: 50Ω Features: A 3-digit digital voltage meter and a 6-digit hardware frequency indicator 2 Sets of digital voltmeters Support threshold testing, free measurements within the screen Abundant SCPI remote command control USB Host/Device Dimensions (mm): 318(L) x 110(W) x 150mm(H) Display: 7-inch liquid crystal The 2-Channel Bench Oscilloscope & Waveform Generator Package Includes: Hantek DSO2D10 Oscilloscope, 1x 100MHz oscilloscope test probe, 2x BNC Alligator test leads, USB cable, power cable, CD with PC software and user manual. Please note: lead time on this item is around 3 weeks.
